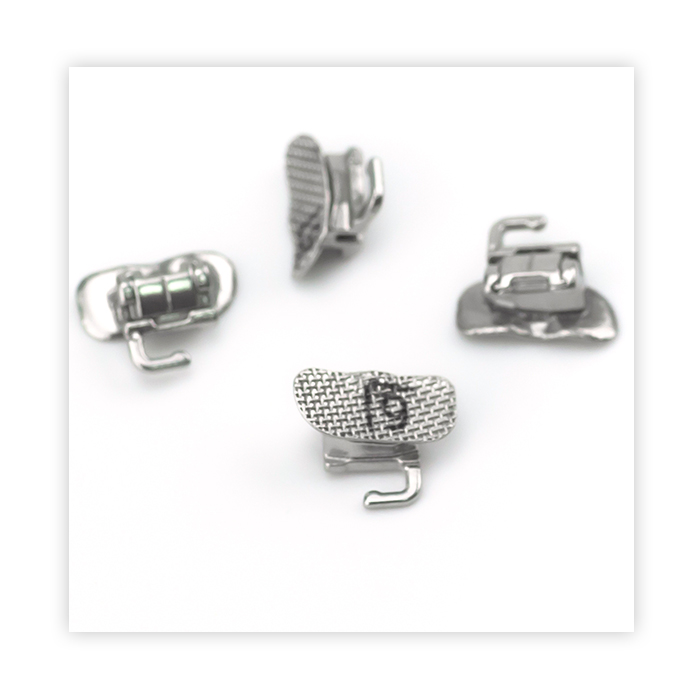

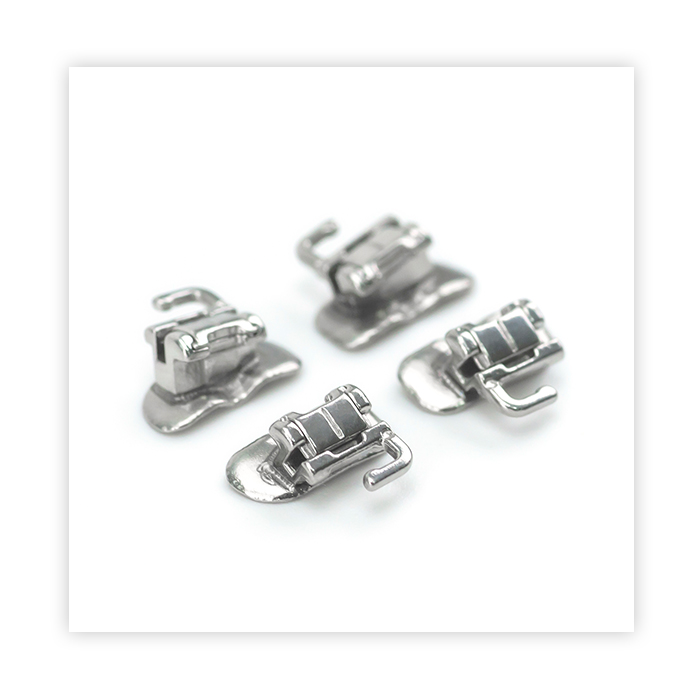

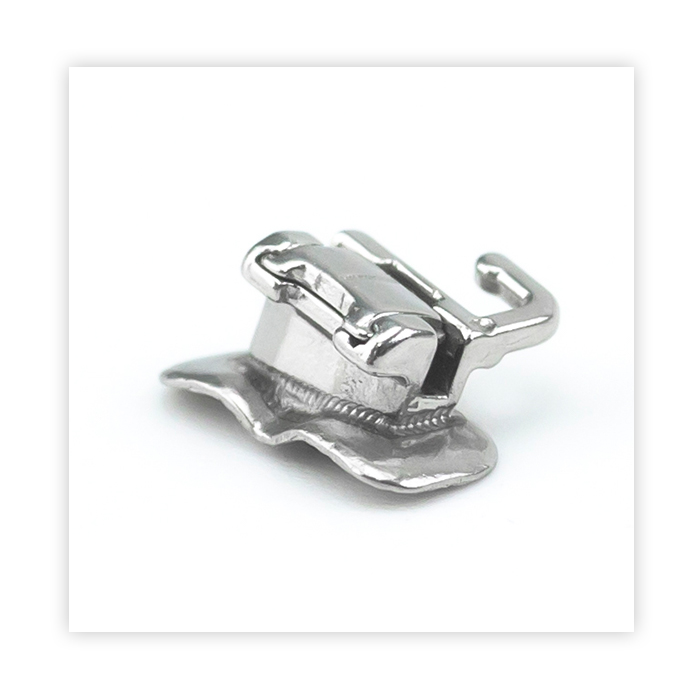

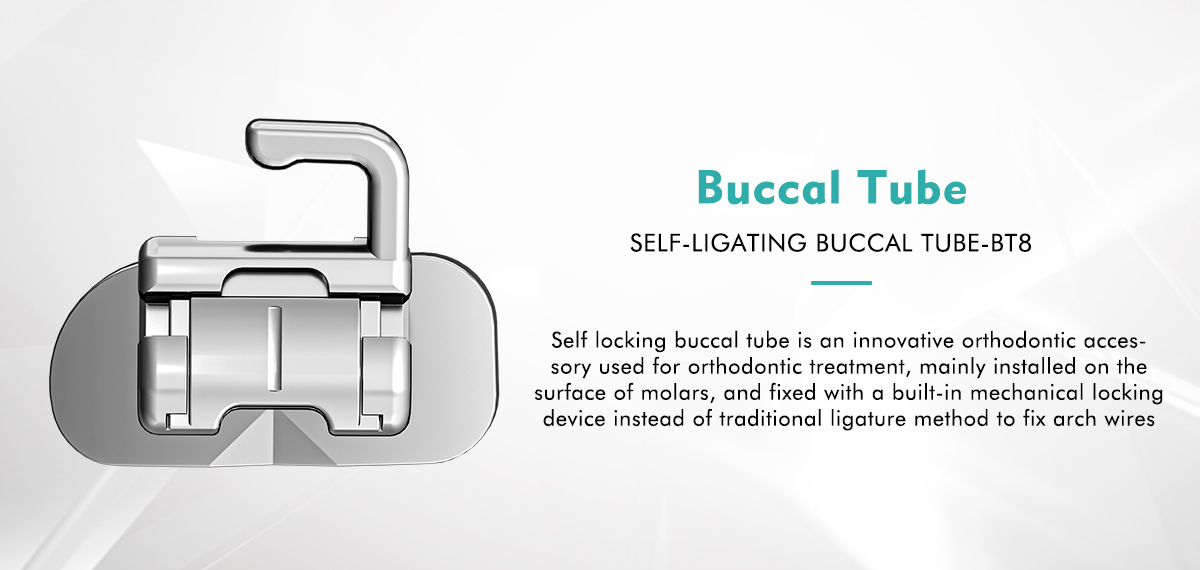

Self-Ligating Buccal Tube-BT8
Features
Applying fine material and molds , made from precise casting process line with compact design. Mesial chamfered entrance for easy guiding of the arch wire. Easy Operate . High Bonding strength , contoured monoblock in accordance with the molar crown curved base design, fully fitted to the tooth. Occlusal indent for precise positioning. Slightly brazed slot cap for the convertible tubes.
Product Details
Revolutionary locking mechanism
Using sliding cover, spring clip or rotating door design to achieve automatic fixation of arch wire
Friction optimization system
The archwire slides freely in the groove (reducing friction by 40-60%)
Three dimensional control capability
Precise management of vertical, horizontal, and torque movement of teeth
1st Molar Buccal Tube
|
System |
Teeth |
Torque |
Offset |
In/out |
width |
|
Roth |
16/26 |
-14° |
10° |
0.5mm |
4.0mm |
|
36/46 |
-25° |
4° |
0.5mm |
4.0mm |
|
|
MBT |
16/26 |
-14° |
10° |
0.5mm |
4.0mm |
|
36/46 |
-20° |
0° |
0.5mm |
4.0mm |
|
|
Edgewise |
16/26 |
0° |
0° |
0.5mm |
4.0mm |
|
36/46 |
0° |
0° |
0.5mm |
4.0mm |
Shipping
1. Delivery: Within 15 days after order confirmed.
2. Freight: The freight cost will charge according to the weight of detailed order.
3. The goods will ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.Airline and sea shipping are also optional.
